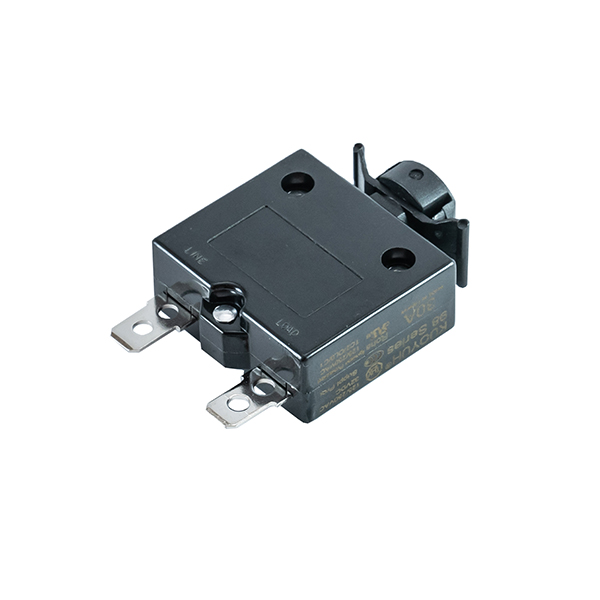

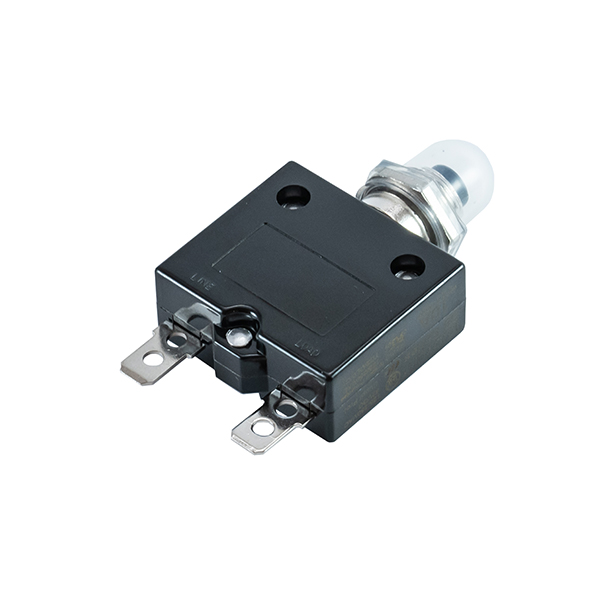

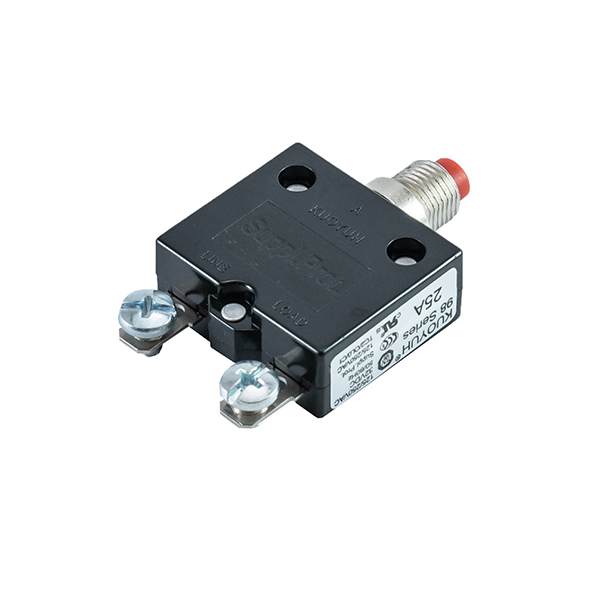

產品名稱: 98系列
產品型號: 3A-50A
點擊次數(shù): 次
額定電流(rating):3A-50A 輸入電壓(Input Power):125VAC/250VAC/32VDC 50-60Hz 耐電壓強度(Withstand voltage strength):1500VAC/1min 漏電電流≤0.5mA(1500VAC/min,the leaked current is less than≤0.5mA) 絕緣電阻(Insulation Resistance):500VDC1Min≥100MΩ 額定短路能力(Rated short-circuit capacity):125VAC/1000A，250VAC/1000A 額定通斷能力(Rated breaking capacity):6倍額定電流(6 times rated current) 復位方式(reset):手動復位(Manual Push Reset) 復位時間(Reset Time):60s"內回復(Within 60s") 脫扣特性(Tripping characteristics) 測試環(huán)境溫度(The test environment temperature):25℃±3℃ 額定電流200%(200% of Ratcd Currcnt):5-35s" 內脫扣(5-35s" Seconds Trip) 額定電流150%(150% of Rated Current):一個小時內脫扣(Trip within 1 Hour) 額定電流100%(100% of Rated Current):保持不脫扣(Hold,No Trip)
